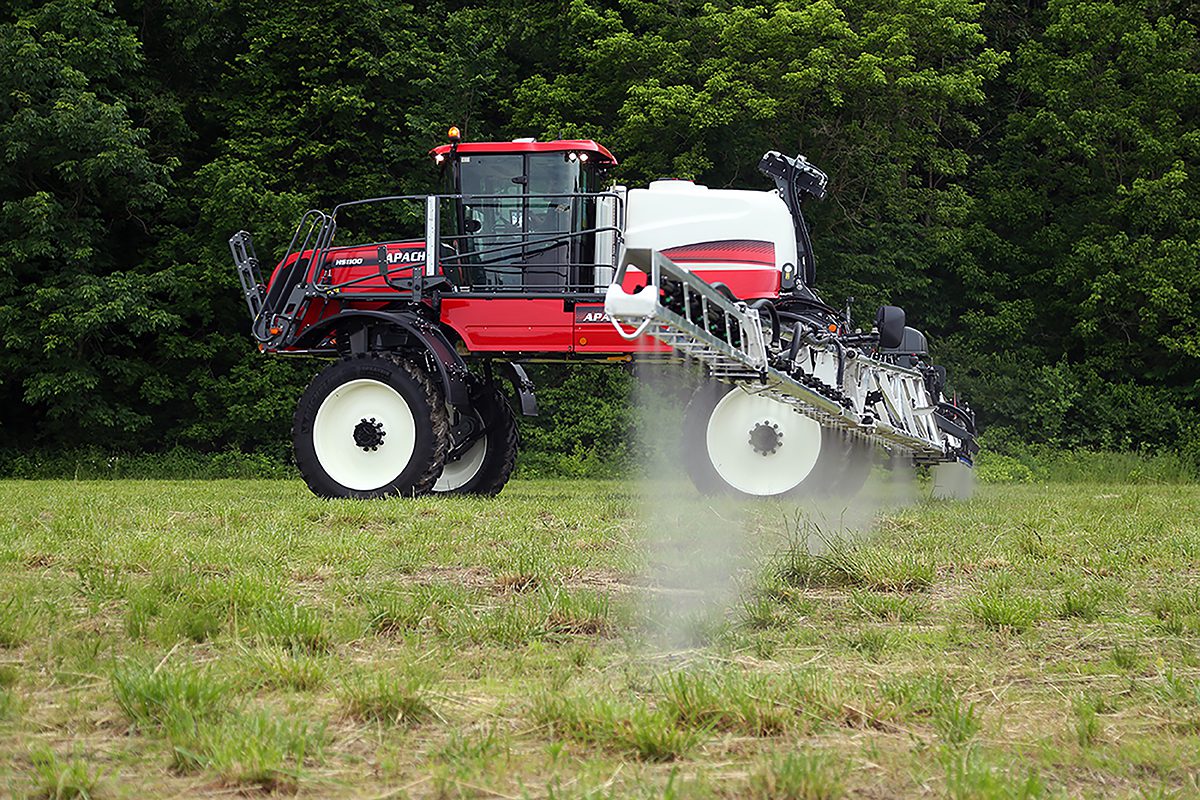

HS1100 Sprayer

Apache Sprayers HS1100

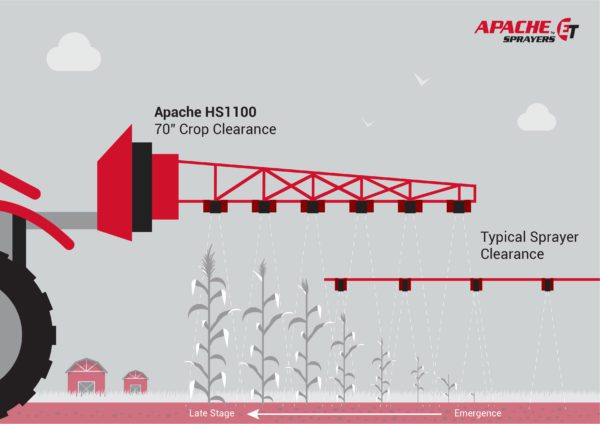

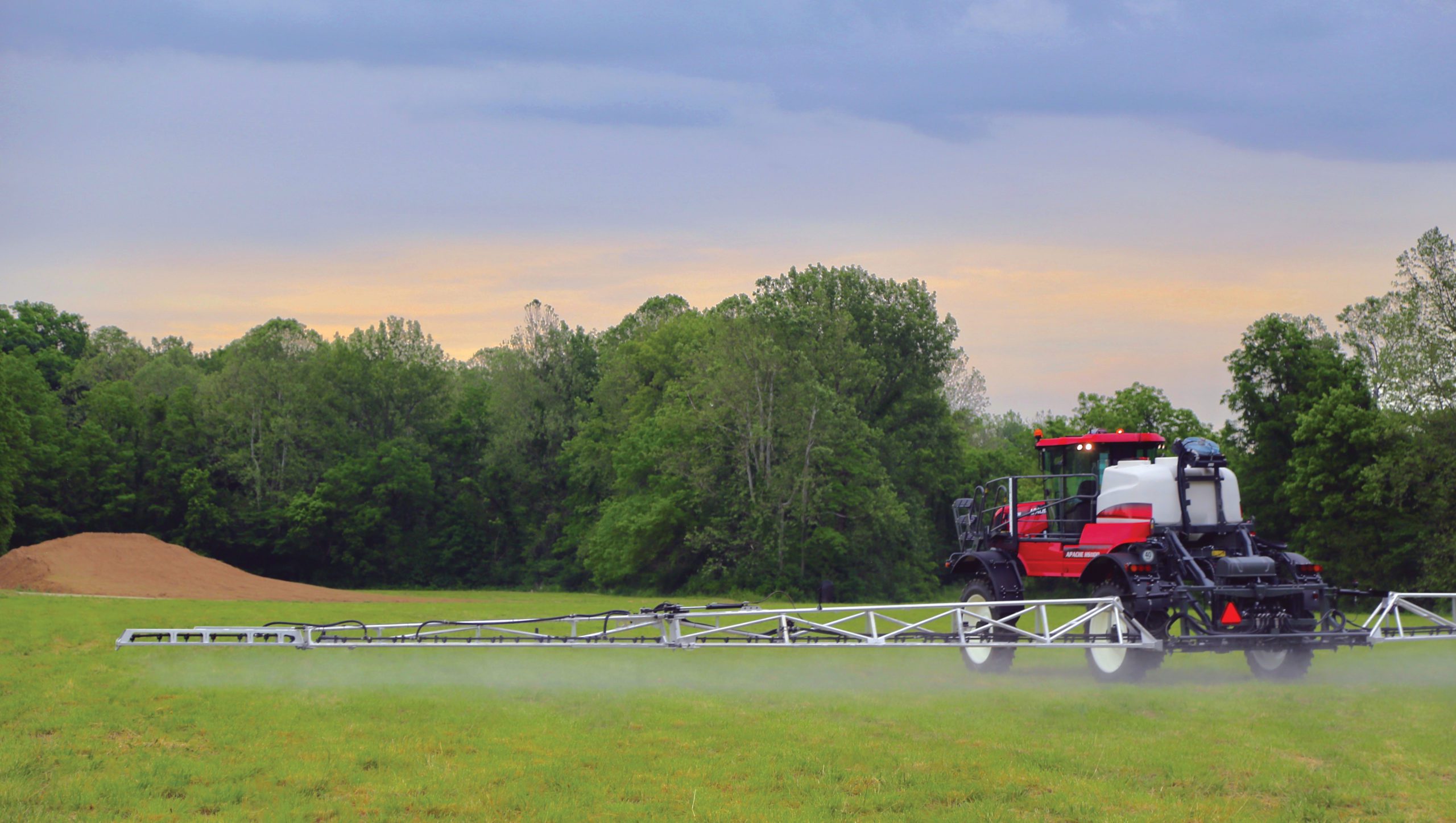

Conquer all season application with one machine—the Apache HS1100 rear boom sprayer. Equipped with a 60″–70″ crop clearance that adjusts hydraulically on-the-go with a push of a button. You get the benefits of high crop clearance without sacrificing center of gravity when spraying low. A 120 or 132 foot boom on the HS1100 provides the ultimate reach in the field.

Smooth, Responsive Ride

The active pneumatic suspension (front and rear), hydraulic shocks and oscillating rear axle make for a smooth, responsive ride.

Comfort Cab

Designed with ergonomic comfort in mind, the HS1100 comfort cab offers climate controlled leather seat, simple machine controls, and intuitive joystick controls for ease of operation and improved operator productivity.

Crab Walk and Four Wheel Steer

The Apache HS1100 Hydrostatic Sprayer features four-wheel steering and slope compensation with back axle correction for better control on hills and headlands. The crab walk steer mode allows for enhanced mobility in tight places.

Ready to experience the Apache difference?

Request a FREE sales quote and find out why EquipmentWATCH ranks Apache Sprayers Highest Retained Value in the industry.

HS1100 Features

Product Tank Capacity: 1,120 gallons
Weight: 28,225 lbs
Rated Horsepower: 300HP
Engine: Cummins QSB6.7 300HP (rated)
Transmission: Rexroth Hydrostatic
Crop Clearance: 60″-70″ hydraulic adjustable
Four-Wheel Steer: Slope compensation and back axle correction.
Crab-Steer: Enhanced mobility in tight places

Ideal for all-season applications, the Apache HS1100 Hydrostatic Sprayer adjusts automatically with a push of a button from 60 to 70 inches for maximum crop clearance.


Conquer all-season spraying application with Apache HS1100.

Additional Standard Features

Ergonomic Operator Console

The modern operator interface is designed with the best ergonomic comfort in mind by utilizing the common joystick, display, digital keypad, and buttons offering operators simplicity and control.

The streamlined control system for HS1100 brings together the proven Bosch hydrostatic controllers with Apache-proven ACTIA and Raven boom control system components for superior control of drive train, boom and auxiliary functions for ease of operation and in-field service.

Request a free field demo and find out why EquipmentWATCH ranks Apache Sprayers Highest Retained Value in the industry, or determine the lifetime value of owning an Apache with our NEW total cost of ownership tool.

HS1100 Options

Our sprayers are reliable for many reasons, one being our lean manufacturing to build sprayers exactly the way you want them. That means we don’t force you to pay for the things you don’t want or need. Our “a la carte” menu gives you the freedom to choose upgrades, so your sprayer is customized for you and your operational needs.


Option
Description
Fence-Row NozzlesThese added nozzles are great for keeping fence lines and
outer edges of fields clean. The extra nozzle can be added to the left or right side of the boom, or both.
3-Inch Product FillFill up faster thanks to the upgraded 3-inch diameter
product fill connection.

Ready to experience the Apache difference?

Schedule your FREE Apache field demo and get a no-obligation sales quote.

Want more information?

Unique Features of the HS1100

  TANK CAPACITY

1,120 gal

CHASSIS, SUSPENSION & TIRES
WEIGHT
(APPROXIMATE DRY WEIGHT)
28,225 lbs
AXLE WIDTH 120″ – 160″ hydraulic adjustable

TRANSPORT WIDTH & HEIGHT 144″ maximum
OVERALL LENGTH 372″ Maximum
TURNING RADIUS 24′ (Two-wheel steer) 13′ (Four-wheel steer)
WHEEL BASE 14′ 7”
FRONT TIRES (STANDARD) Michelin 380/90R46
REAR TIRES (STANDARD) Michelin 380/90R46
CROP CLEARANCE 60″-70″ hydraulic adjustable
SPRAY OPTIONS
BOOMS

Pommier 100′, 120′, or 132′ aluminum

RINSE TANK 110 gal
ENGINE & DRIVETRAIN
RATED HORSEPOWER  300 HP
DRIVELINE EFFICIENCY 75%
PTG: HP PER 1,000 lbs. 8
FUEL TANK CAPACITY 100 gal
TRANSMISSION Rexroth hydrostatic
ENGINE
Cummins QSB6.7 300HP (rated)
