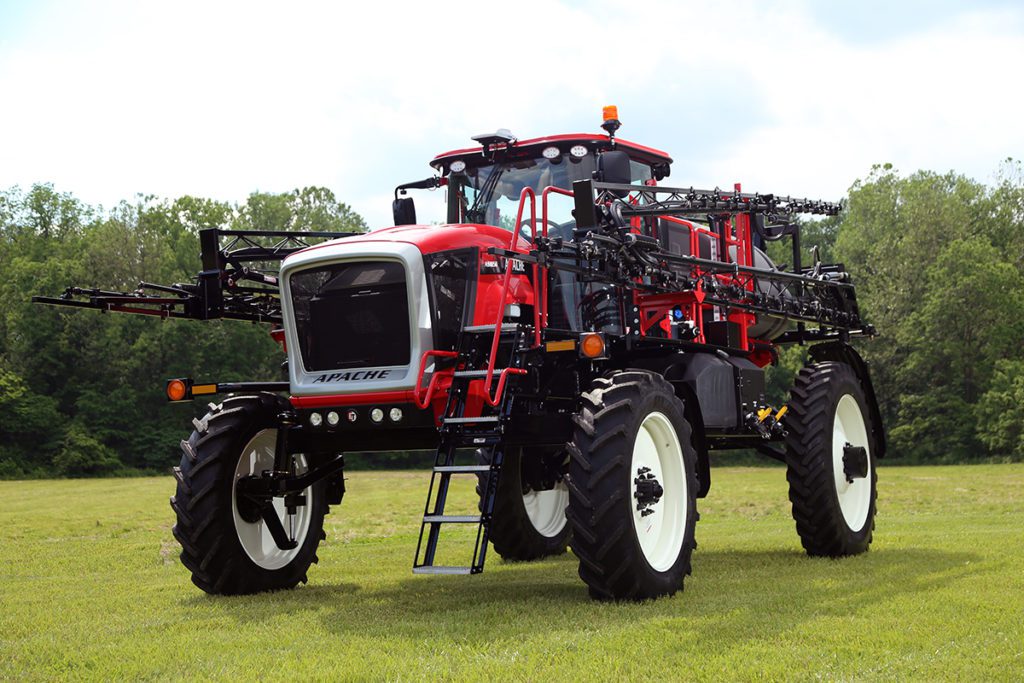

AS1050 Sprayer

AS1050

We don’t sacrifice comfort. Our 1,000-gallon AS1050 sprayer is an ideal fit for most any farming operation. A durable ZF 6-speed power shifting transmission, equipped with a lock-up torque converter, doubles the engine’s torque. The lock-up function couples the engine to the transmission, creating a direct drive transmission. Our transmissions are battle tested year-round in extreme conditions by world-class off-highway heavy equipment makers. You get the shifting power you need, without the added weight.

AS1050 Features

Product Tank Capacity: 1,000 gallons
Weight: 22,200 lbs
Engine: Cummins Performance Series V, 225 hp
Transmission: ZF power shift 6 speed
Crop Clearance: 42″ Standard or 50″ Optional

Power, performance and value- that is what you can expect from Apache Sprayers.

Equipment Technologies

MY2022 New AS1050 Product Enhancements

Improved Operator Ride

Enjoy a more comfortable ride. Our fluid-elastic active “Hydrocone” cab isolators from AMC Mecanocaucho improve the ride as much as 50% by better absorbing shock and displacement of the chassis.

Ease of Steering

Our new variable displacement load-sense piston pump provides the right amount of hydraulic flow at all speeds while reducing steering effort by as much as 20% for ease of steering at headlands, hills and tight corners.

Boom Recirculation

Helps in priming the boom before spraying, ensuring a precise and uniform spray pattern. It also reduces and/or eliminates product settling in boom pipes, enables accessible and complete cleanout of the booms, detects spray mode vs. recirculation mode automatically, and works with different precision options such as individual nozzle control, section control, etc. with built-in low-flow alert.

Request a free field demo and find out why EquipmentWATCH ranks Apache Sprayers Highest Retained Value in the industry, or determine the lifetime value of owning an Apache with our NEW total cost of ownership tool.

AS1050 Options

Our sprayers are reliable for many reasons, one being our lean manufacturing to build sprayers exactly the way you want them. That means we don’t force you to pay for the things you don’t want or need. Our “a la carte” menu gives you the freedom to choose upgrades, so your sprayer is customized for you and your operational needs.

Option
Description
Fence-Row NozzlesThese added nozzles are great for keeping fence lines and
outer edges of fields clean. The extra nozzle can be added to the left or right side of the boom, or both.
3-Inch Product FillFill up faster thanks to the upgraded 3-inch diameter
product fill connection.
Hypro® Cleanload™The Hypro Cleanload is a self contained eductor system that allows operators to mix liquid and dry chemicals safely and quickly.
FendersIf you want mud splash-back protection, fenders are a great option to help keep things clean and prevent dust and mud clogs. Available in the front, rear, or a combination of each.
Enhanced Lighting PackageOur optional LED lighting package produces more light, while consuming less energy. This lighting package features 64 LED bulbs, located above the grille and cab and next to the fill station. The lights are situated to reduce bounceback reflection. LED bulbs have an average lifespan of tens of thousands of hours
Power MirrorsOperators have the option of adjusting the single power side mirror attached to the cab from within the cab.

AS1050 Virtual Tour

Schedule your FREE Apache field demo and get a no-obligation sales quote.

Want more information?

Unique Features of the AS1050

  TANK CAPACITY





1,000 gal





CHASSIS, SUSPENSION & TIRES
WEIGHT
(APPROXIMATE DRY WEIGHT)
20,200 lbs
AXLE WIDTH 120″ fixed





120″-160″ adjustable

TRANSPORT WIDTH & HEIGHT 144″ maximum
OVERALL LENGTH 290″ minimum
TURNING RADIUS 20′
WHEEL BASE 15′
FRONT TIRES (STANDARD) Michelin 380/80R38
REAR TIRES (STANDARD) Michelin 380/90R46
CROP CLEARANCE 42″ standard or 50″ optional
SPRAY OPTIONS
BOOMS

90′, 60/90′, 100′ steel or Pommier 100′, 120′, or 132′ aluminum



RINSE TANK 100 gal
ENGINE & DRIVETRAIN
RATED HORSEPOWER 225 HP
DRIVELINE EFFICIENCY 90%
PTG: HP PER 1,000 lbs. 10
FUEL TANK CAPACITY 90 gal
TRANSMISSION ZF power shift 6 speed
ENGINE
Cummins Performance Series V



Want more? Download the full spec sheet.
